Generator Mobile Power Distribution Panel /Cart

200 Amp Three Phase 120/208Volt with Main Breaker

Input: (5) Series 16 Cam-Devices, Phase color coded with (5) clear snapback covers

Output: (12) 50A 125/250V California Style Receptacles with weatherproof snapback covers

Branch Circuit Protection: (1) 200 Amp 3Ph Main Breaker, (12) 50 Amp two pole breakers.

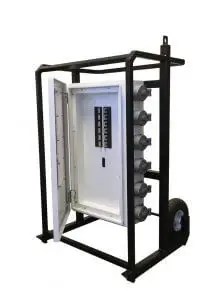

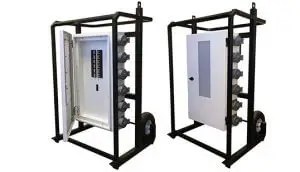

Enclosure is a steel all welded enclosure with Hinged removal front door with viewing window to check breaker status. Enclosure is fully gasketed, powder coated, mounted on an all steel powder coated frame with pneumatic 10 inch wheels for rugged terrain and lift hooks when lifting into place is required.

This Distribution Panel can be used to connect directly from the Generator to downstream distribution panels or any Three Phase WYE 120/208 volt power source. Panel is built to UL 1640 Specifications.

Dimensions:   30”H x 17”W x 7”D

Dimensions including Cart: 46”H x 27”W x 26”D

Weight: 140 pounds
