Kydex Doghouse

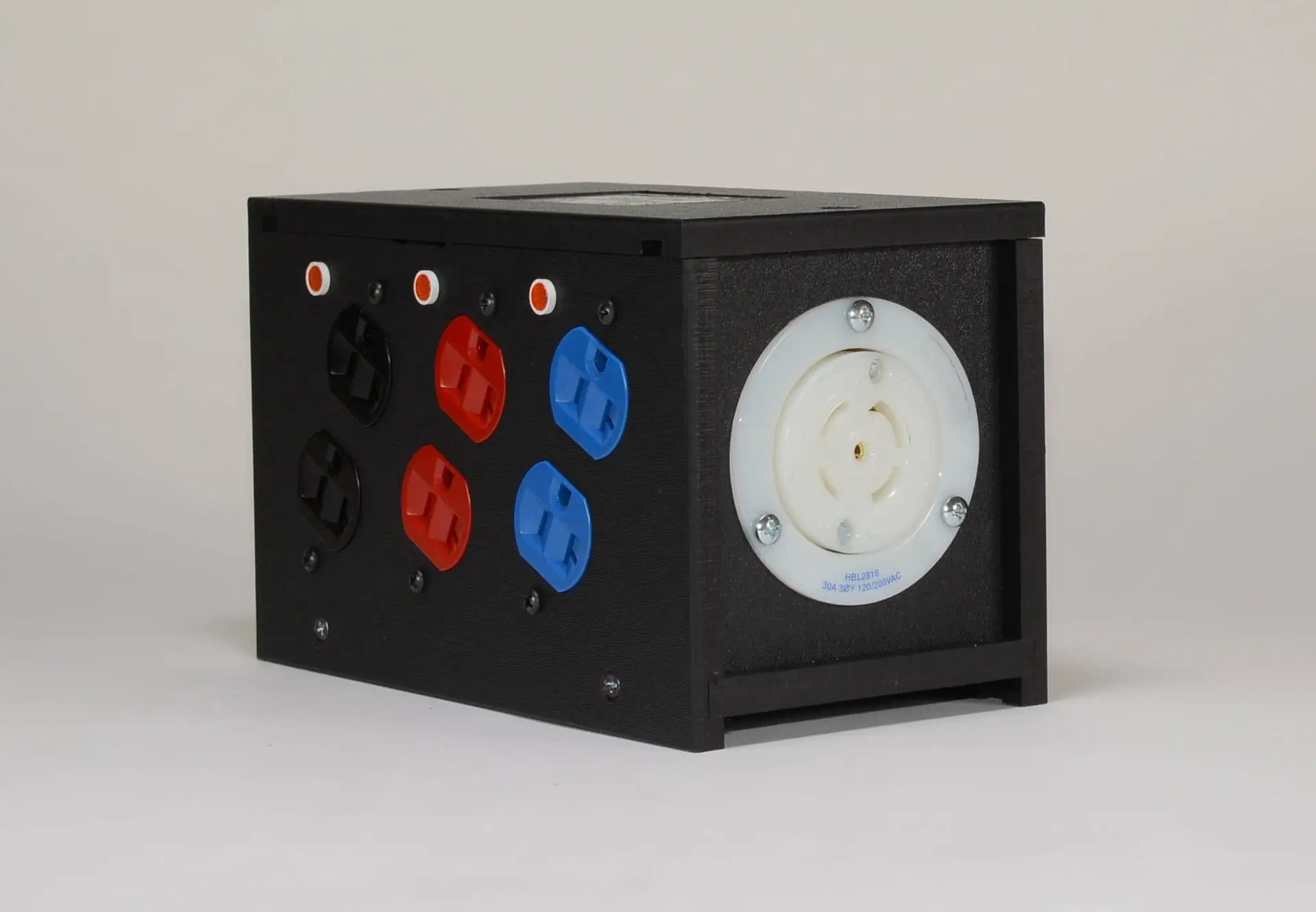

30A Kydex Doghouse

Specifications are:

Input: 30A 208/120V AC 4P/5W (NEMA L21-30) Twist Lock; Pass Thru: 30A 208/120V 4P/5W (NEMA L21-30) Twist Lock; Outputs: (3) 20A 120V AC 2P/3W (NEMA 5-20) phase color coded (Black – X; Red – Y; Blue – Z) duplex receptacles with phase indicator lights.  Branch Circuit Protection: (3) Single Pole 20A Hydraulic Magnetic Breakers mounted directly opposite the Edison on the other side.

Dimensions: 8.25″L x 4.5″W x 5″H

Enclosure Material: Kydex
