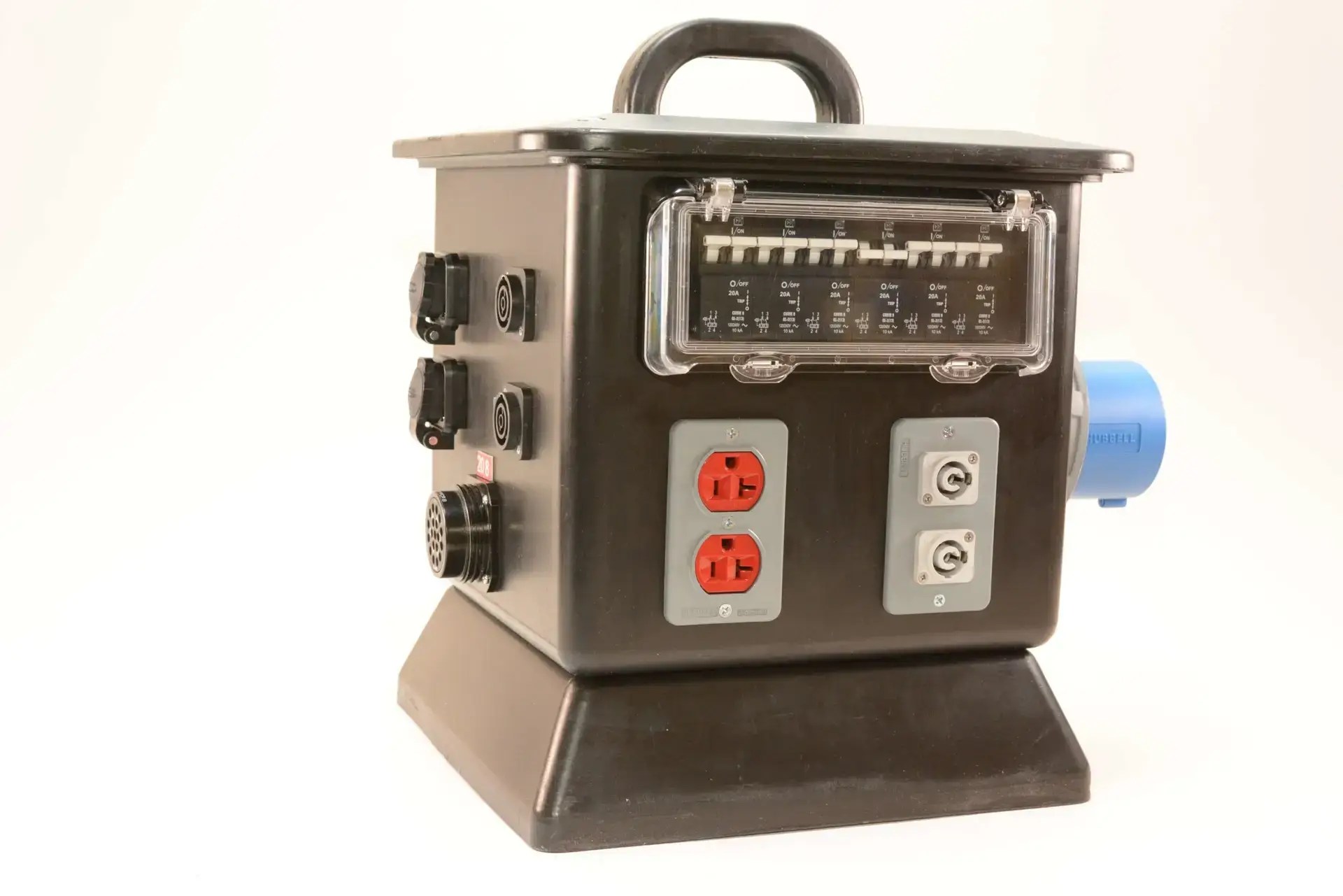

Rubber Pagoda Style 100A Three Phase Panel with USB Port and Hubbell Devices

This unit is in a Non-Conductive Rubber Functionally Operational Stackable Enclosure with a Molded Handle and is built to UL 1640 Standards.



Specifications are:

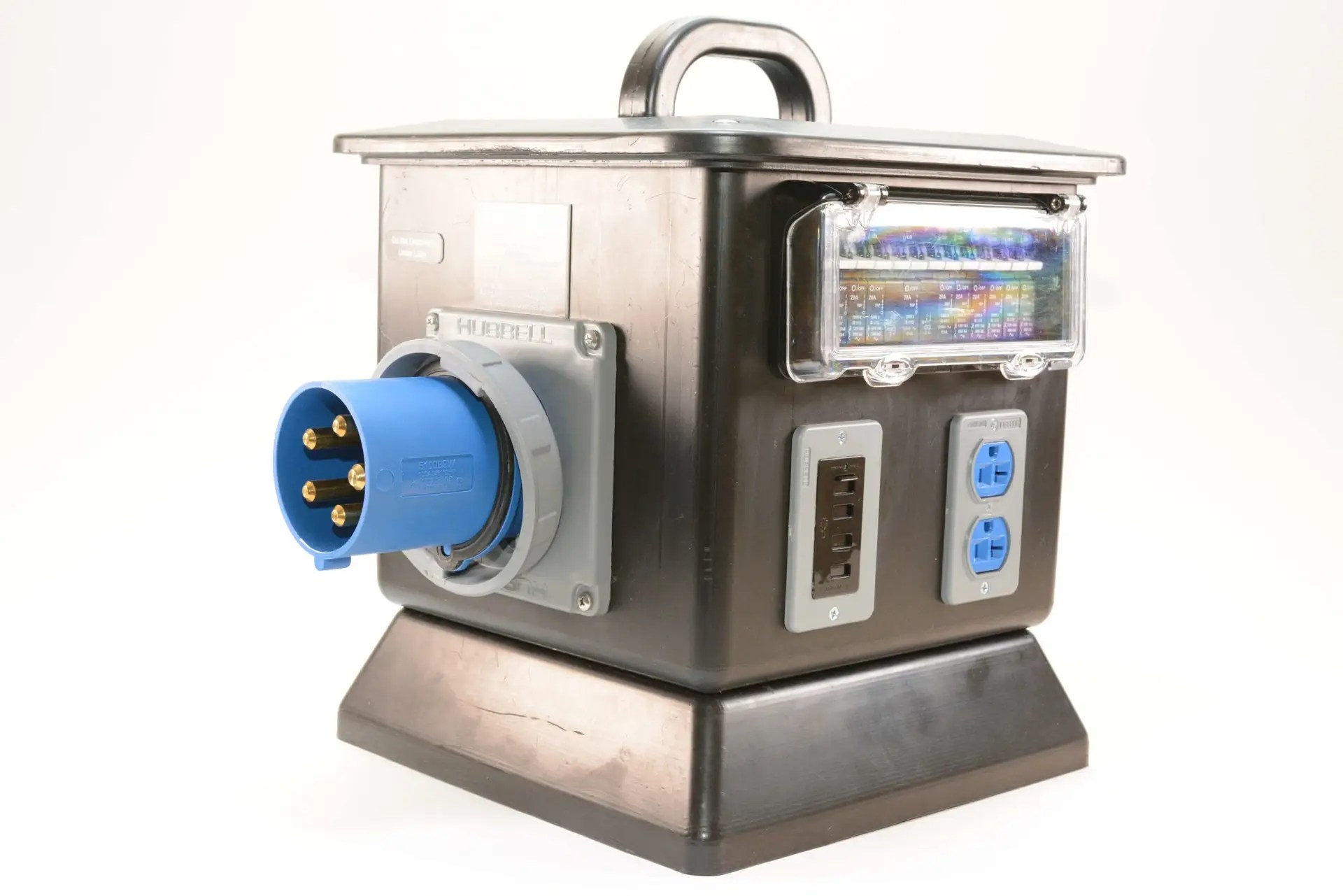

Input: 100A 120/208V 3-Phase (3 Hot + Neutral + Ground), 4 Pole / 5 Wire Pin & Sleeve IEC 309 Compatible with (3) Phase Indicator Lights. *an Adapter Pin & Sleeve to Standard Series 16 Cams or Series 15 Cams can also be used.

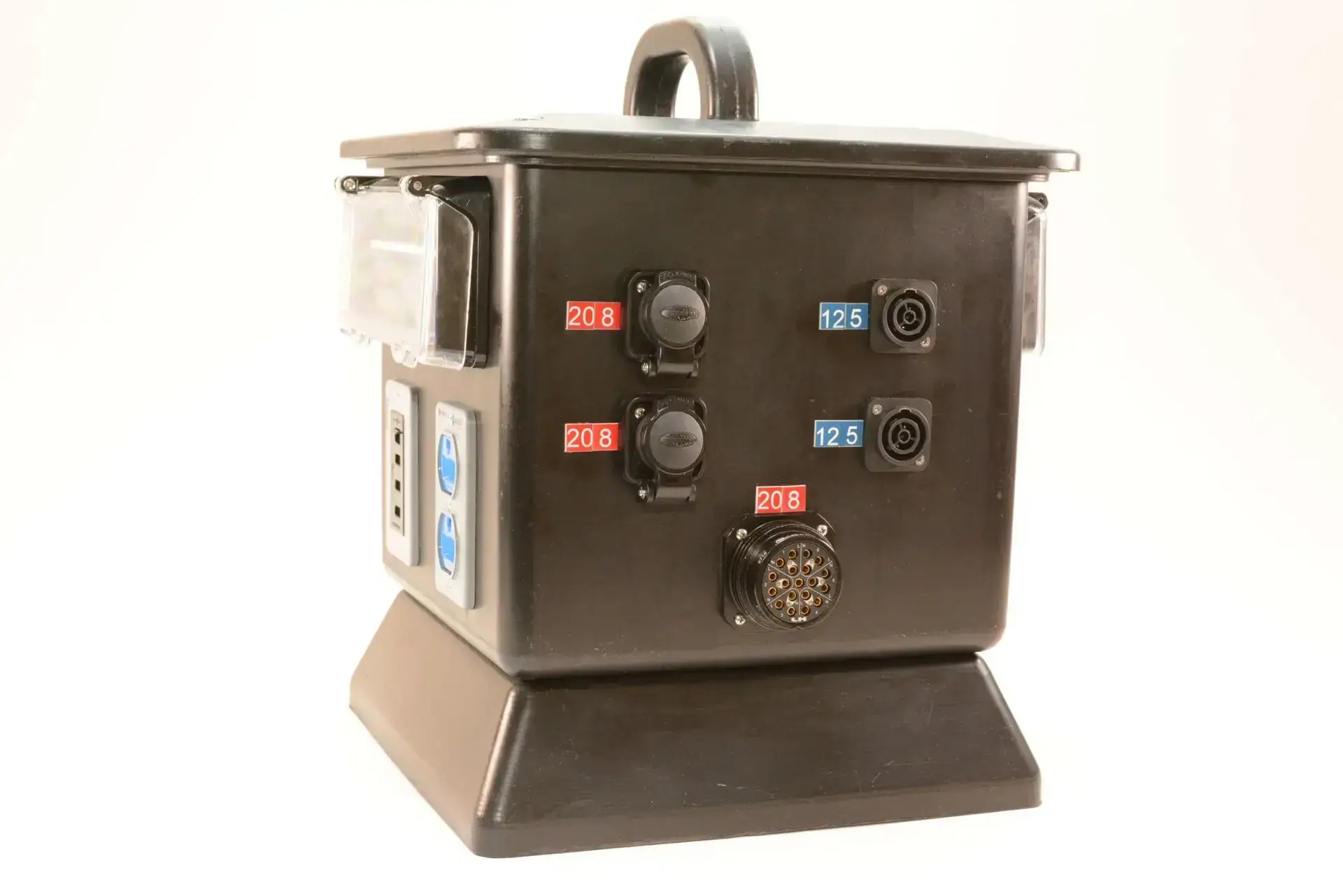

Outputs: (1) 19-Pin Receptacle wired at 6 circuits of 20A 208V (2H + Grd); (2) Hubbell Insul-lock Plus (compatible with Neutrik True One) wired at 208V (2H + Grd); (2) Hubbell Insul-lock (compatible with Neutrik True One) wired at 125V 20A (1H + N + Grd); (2) Hubbell Insul-lock (compatible to Neutrik Power Con) wired at 125V 20A (1H + N + Grd); (1) Hubbell Duplex Receptacle 20A 125V (1H + N + Grd); (1) Hubbell Split Tab Duplex Receptacle (2) 20A 125V (1H + N + Grd); (1) Hubbell USB Charger

Over Current Protection: (8) 20A 2P, (8) 20A 1 Pole Hydraulic Magnetic Circuit Protection Breakers
